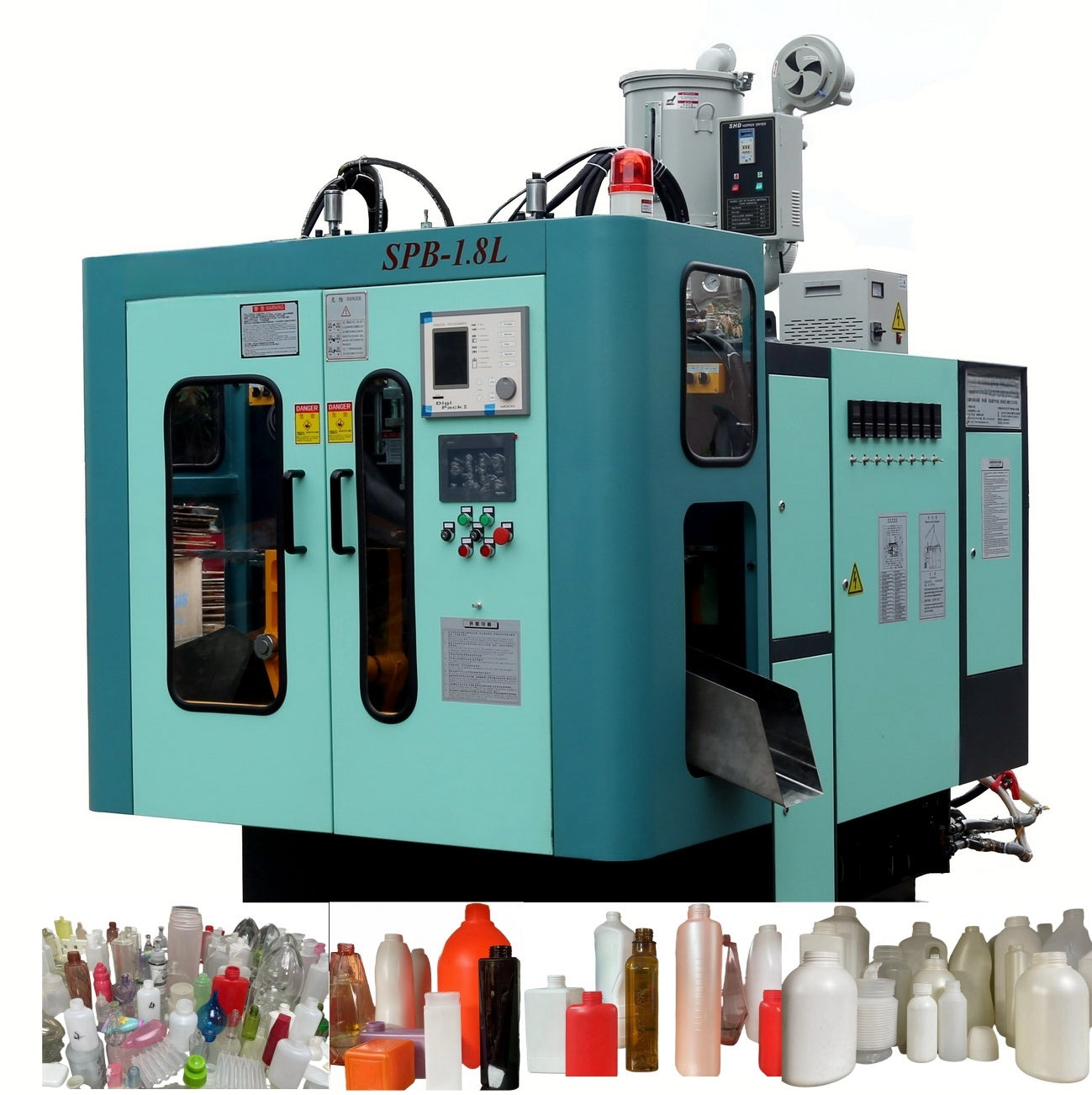

Design and Application of 1.8L Extrusion Blow Molding Machines for High-Performance Hollow Container Production

1. Introduction

Extrusion blow molding (EBM) remains the dominant method for manufacturing seamless, cost-effective hollow thermoplastic containers in the 1–5L range. Among these, the 1.8-liter (1.8L) EBM machine has emerged as a preferred solution for applications requiring slightly larger capacity than standard 1L bottles—such as engine oil containers, premium detergent packaging, and industrial chemical drums—without the complexity and cost of large-volume (>10L) systems [4][8].

In China, where over 96,000 EBM machines were produced in 2025 alone [8], manufacturers like Tongda Mechanical and Yijiu Machinery offer modular platforms (e.g., HTⅡ-18L, YJH90-12LⅡ) capable of producing 1.8L containers with cycle times under 25 seconds and output rates exceeding 1,200 pieces per hour in dual-station mode [4][6]. This paper examines the design, control logic, and performance optimization of contemporary 1.8L EBM machines, with emphasis on precision, energy efficiency, and adaptability to recycled HDPE feedstock.

2. Machine Configuration and Core Components

A typical 1.8L extrusion blow molding machine (e.g., HTⅡ-18L) features the following specifications [4][6][11]:

The dual-station design enables continuous production: while one mold cools the 1.8L bottle, the second performs extrusion, clamping, blowing, and ejection—effectively eliminating idle time and doubling throughput compared to single-station units [5][11].

3. Wall Thickness Control and Product Quality

Uniform wall distribution is critical for 1.8L containers to meet drop-test standards (e.g., ASTM D2911) and chemical resistance requirements. Modern machines employ:

• Servo-controlled mandrel positioning: Adjusts die gap in real time during parison extrusion, supporting up to 32 programmable control points along the parison length [4].
• Pre-blow function: A low-pressure air pulse prevents parison wall adhesion before main inflation [5].
• Infrared positioning system: Aligns the parison with the mold cavity within ±0.5 mm, minimizing flash and material waste [4].

These technologies enable wall thickness variation of <±0.15 mm, reducing raw material usage by 8–12% while maintaining structural integrity—particularly vital for automotive and chemical packaging [4][8].

4. Energy Efficiency and Sustainability

Plastic processing accounts for a significant share of industrial electricity use in China. Two key energy-saving technologies are now standard in 1.8L EBM machines:

4.1 Variable Frequency Drives (VFDs)

Traditional hydraulic systems run oil pumps at fixed speed (50 Hz), wasting energy via overflow valves. VFDs modulate motor speed based on real-time demand. According to pump affinity laws:

Reducing motor frequency from 50 Hz to 35 Hz cuts power consumption by ~65%. Field data show 25–65% energy savings after VFD retrofitting [2][5].

4.2 Electromagnetic Heating

Replacing resistive heaters with induction coils offers:

• 30–70% higher thermal efficiency,
• 25% faster warm-up,
• Reduced ambient heat loss due to integrated insulation [2].

For a 1.8L machine operating 20 hours/day, annual energy savings reach 8,000–12,000 kWh, supporting China’s carbon peaking goals [2][8].

5. Industrial Applications

The 1.8L EBM machine is ideal for:

• Automotive: Engine oil, transmission fluid, and coolant bottles,
• Household: Premium detergent, fabric softener, and bleach containers,
• Industrial: Reagent drums, pesticide bottles, and solvent carriers.

Its capacity balances material economy and handling convenience, making it a staple in logistics and retail packaging. Leading Chinese manufacturers now offer compatibility with post-consumer recycled HDPE (rHDPE), enabling circular economy integration [8][12].

6. Future Trends

The next generation of 1.8L EBM machines will likely feature:

• Full-electric servo clamping (replacing hydraulics for quieter, cleaner operation),
• IoT-enabled remote monitoring with cloud-based diagnostics,
• AI-driven process optimization using digital twins,
• Multi-layer co-extrusion (e.g., HDPE/EVOH/HDPE) for barrier packaging in food and fuel applications [3][10].

Moreover, modular design and standardized components will shorten delivery cycles and reduce maintenance costs—key priorities for global OEMs [10].

7. Conclusion

The 1.8-liter extrusion blow molding machine represents a mature yet continuously evolving platform that bridges the gap between small-bottle efficiency and mid-volume functionality. Through dual-station architecture, intelligent wall thickness control, and advanced energy-saving systems, it delivers high-speed, low-waste production of essential industrial and consumer containers. As sustainability and automation reshape global manufacturing, the 1.8L EBM machine will remain a cornerstone of efficient, scalable, and eco-conscious plastic packaging production—particularly in China, where innovation and scale converge.
