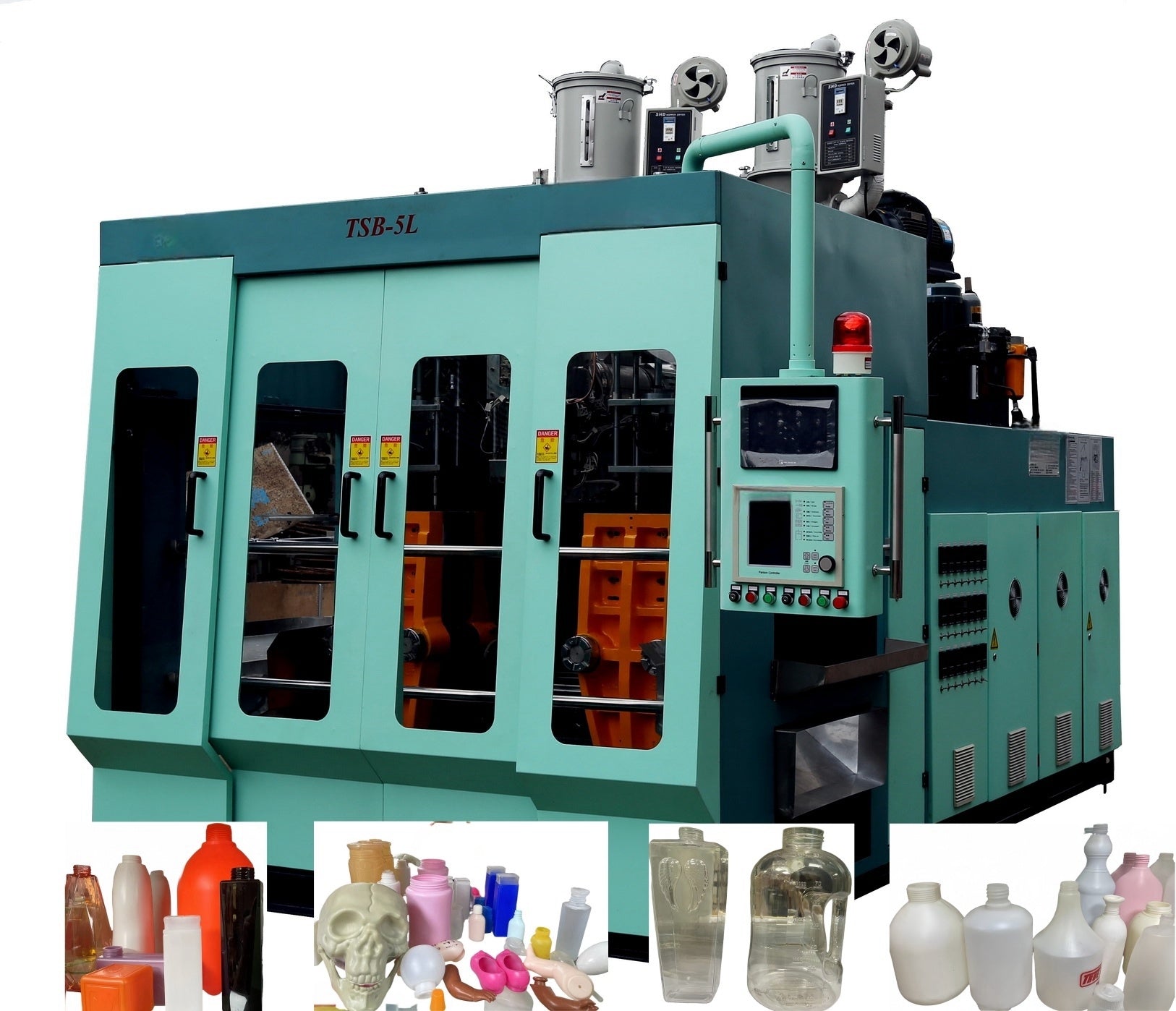

5L Hollow Blow Molding Machine: Technical Analysis, Applications, and Industry Trends

1. Introduction

Blow molding technology has revolutionized the manufacturing of hollow plastic products, offering cost-effective and scalable solutions for industries requiring lightweight, durable containers. The 5L hollow blow molding machine (5L HBM) specializes in producing mid-sized containers, such as water bottles, oil drums, and chemical storage tanks. With the global blow molding market projected to grow at a CAGR of 10% by 2025, the 5L HBM plays a pivotal role in meeting demands for precision, energy efficiency, and sustainability. This paper focuses on:

• Technical principles and design of 5L HBM machines.
• Applications in packaging, automotive, and industrial sectors.
• Industry trends, including smart automation and eco-friendly materials.

2. Technical Principles of 5L Hollow Blow Molding Machines

2.1 Core Components

The 5L HBM machine consists of the following key components:

1. Extruder System:

   • Converts raw plastic pellets (e.g., HDPE, PP, PET) into a molten tube-shaped parison.
   • Key parameters: Screw diameter (75 mm), L/D ratio (25:1), and plasticizing capacity (90 kg/h for HDPE) [6].

2. Mold System:

   • Dual-station design (e.g., TJ-HBD5L model) allows simultaneous mold opening/closing and parison extrusion.
   • Center-fed die head ensures uniform thickness (reducing ovality by 62%) [3].

3. Hydraulic System:

   • High-precision proportional valves control mold clamping force (90 kN for TJ-HBD5L) and parison wall thickness.

4. Control System:

   • PLC + touchscreen interface for temperature control (±1°C) and process automation [6].

2.2 Working Cycle

The 5L HBM follows a four-stage process:

1. Extrusion: Molten plastic is extruded into a parison.
2. Clamping: The parison is placed into a mold cavity (max volume: 5L).
3. Blowing: Compressed air (0.8 MPa) expands the parison to match the mold shape.
4. Cooling and Ejection: Rapid cooling (via water or air) ensures dimensional stability before ejection.

3. Applications of 5L Hollow Blow Molding Machines

3.1 Food and Beverage Packaging

• Products: 5L water bottles, juice jugs, and edible oil containers.
• Advantages:
  • High hygiene standards (e.g., medical-grade PP compliance).
  • Cost-effective for mid-volume production (cycle time <25 seconds) [3].

3.2 Chemical and Industrial Storage

• Products: 5L chemical drums, solvent containers, and lubricant bottles.
• Material Compatibility: HDPE’s chemical resistance makes it ideal for corrosive substances.

3.3 Automotive Components

• Products: Fuel tanks, coolant reservoirs, and air ducts.
• Precision Requirements: Wall thickness tolerance ±0.1 mm (achieved via servo-driven molds) [3].

3.4 Case Study: TJ-HBD5L Model in Daily Chemicals

The TJ-HBD5L dual-station machine (Shandong Tongjia Machinery) is widely used in China for producing 5L detergent bottles:

• Efficiency: 90 kg/h HDPE output, 7.8-ton machine weight.
• Quality: Uniform wall thickness, smooth surface finish (99.7% defect-free rate) [6].

4. Industry Trends and Optimization Strategies

4.1 Smart Automation

• IoT Integration: Real-time monitoring of temperature, pressure, and cycle time via sensors.
• Predictive Maintenance: Reduces downtime by 30% through AI-driven fault detection [5].

4.2 Energy Efficiency

• Electromagnetic Heating: Saves 30–70% energy compared to resistance coils [10].
• Variable Frequency Drives (VFDs): Adjust motor speed to match production load, cutting energy use by 20% [10].

4.3 Sustainable Materials

• Biodegradable Polymers: Development of 5L containers using PLA or PBAT to meet global eco-regulations.
• Recycling Compatibility: Designing molds for easy disassembly and material recovery [11].

4.4 Multi-Layer Blow Molding

• Barrier Properties: Six-layer co-extrusion technology reduces oxygen permeability by 50% for food packaging [3].

5. Challenges and Future Directions

5.1 Technical Challenges

• Thickness Uniformity: Complex mold geometries may cause uneven parison distribution.
• Noise Reduction: Hydraulic systems generate >75 dB(A) noise, requiring acoustic shielding [3].

5.2 Future Innovations

• Hybrid Systems: Combining blow molding with 3D printing for rapid prototyping.
• AI-Driven Process Optimization: Machine learning models to predict optimal blowing pressure and cooling time.

6. Conclusion

The 5L hollow blow molding machine is a cornerstone of modern plastic manufacturing, balancing efficiency, precision, and scalability. By adopting smart automation, energy-saving technologies, and sustainable materials, manufacturers can align with global trends toward greener and more intelligent production. Future advancements in multi-layer co-extrusion and AI integration will further solidify its role in industries ranging from packaging to automotive.
