Advanced 5-Liter Extrusion Blow Molding Machines: Multi-Material Flexibility, High-Throughput Design, and Industrial Packaging Applications

1. Introduction

The 5-liter container format has become a global standard for products requiring robust, chemical-resistant, and user-friendly packaging. Unlike smaller bottles produced via stretch blow molding, 5L containers benefit from the seamless, stress-free construction of extrusion blow molding, which accommodates integrated handles, thick walls, and multi-layer barrier structures. With rising demand for automation, material efficiency, and recyclability, manufacturers have developed advanced EBM platforms capable of producing 5L bottles at industrial scale while supporting customization and sustainability.

The DKB-5L machine (Dongguan JinJun Machinery, 2025) exemplifies this evolution, offering a scalable solution for containers ranging from 2 mL to 5 L across diverse thermoplastic materials [1].

2. Machine Architecture and Core Systems

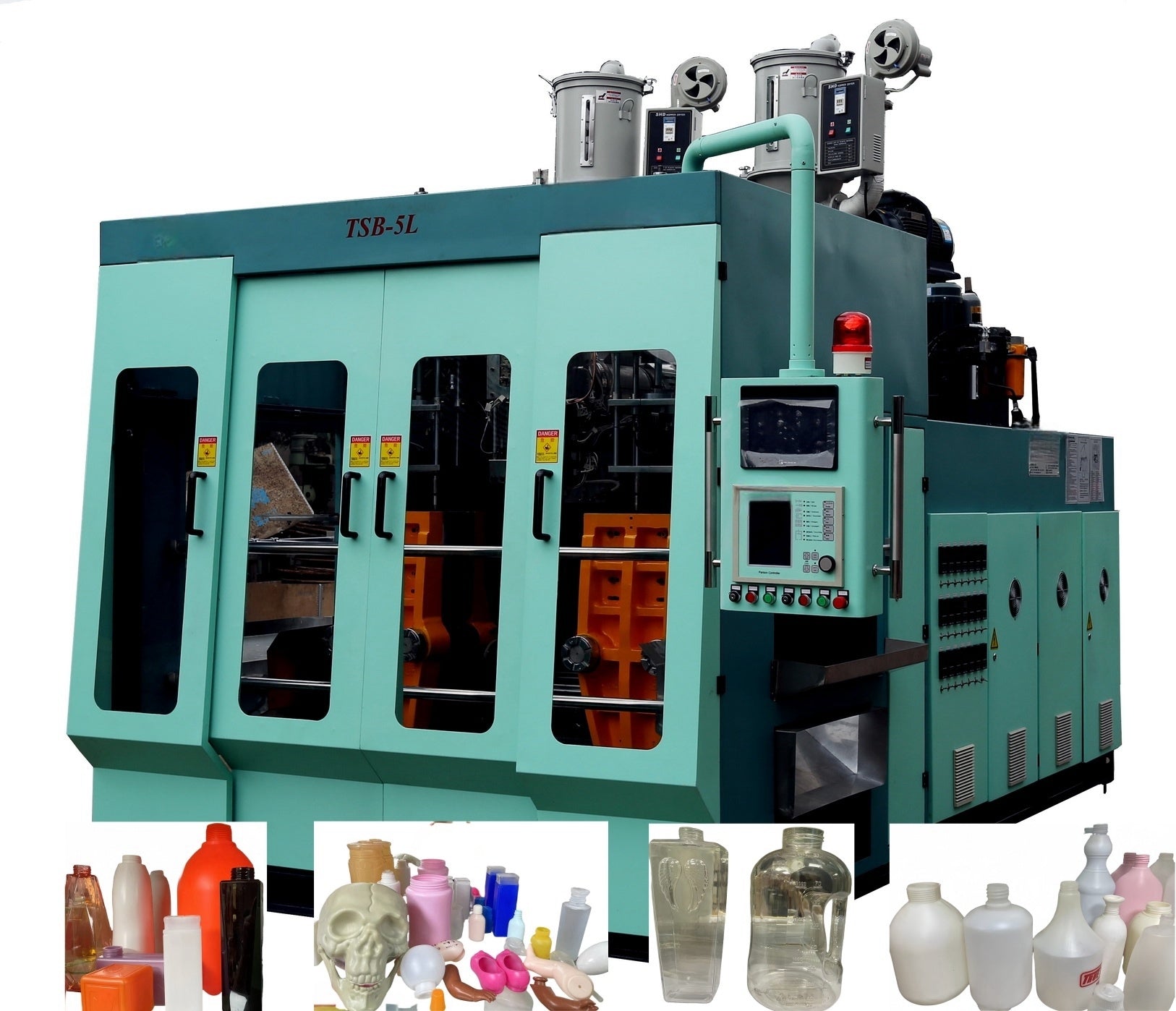

The DKB-5L is a high-performance, dual-station extrusion blow molding machine engineered for versatility and reliability. Its key subsystems include:

• Extrusion System:

  • Compatible with PE, PP, PVC, PETG, PS, PC, TPU, ABS, PA, EVA, and co-extruded blends
  • Supports 1–6 layer co-extrusion for functional (e.g., EVOH barrier) or aesthetic (e.g., dual-color) effects
  • High-plasticizing screw with nitrided steel barrel for wear resistance and thermal stability
  • Water-cooled feed zone prevents premature melting and ensures consistent feeding

• Mold and Clamping System:

  • Horizontal toggle clamping with 3- or 4-tie-bar options
  • Clamping force: ~150–200 kN (estimated based on 5L capacity)
  • Cavity options: 1 to 12 cavities per cycle
  • Quick-change mold and die head system for rapid product switching

• Drive and Motion Control:

  • Hybrid servo-hydraulic system with closed-loop proportional valves
  • Energy-efficient hydraulic circuit with load-sensing pump
  • Smooth, precise motion for parison handling and mold actuation

• Control and Automation:

  • PLC-based industrial control (Siemens or B&R optional)
  • HMI touchscreen interface for real-time monitoring and parameter adjustment
  • Features: automatic deflashing, flash recycling, auto material feeding, remote troubleshooting
  • Optional in-mold labeling (IML) and view stripe integration

3. Production Performance

The DKB-5L achieves high throughput while maintaining dimensional accuracy:

The dual-station design enables continuous operation: while one station blows and cools, the other extrudes the next parison—maximizing machine utilization.

4. Material Versatility and Product Examples

The machine’s broad material compatibility supports diverse applications:

The view stripe—a transparent vertical band in opaque bottles—enhances usability by allowing content level monitoring, a feature increasingly mandated in industrial and consumer packaging.

5. Industrial Applications

5L blow-molded containers are essential in:

• Food & Beverage: Premium cooking oils, vinegar, syrup
• Automotive: Engine oil, transmission fluid, coolant bottles
• Agriculture: Pesticides, herbicides, liquid fertilizers (3–5 layer barrier required)
• Household Chemicals: Concentrated detergents, disinfectants
• Cosmetics: Luxury body oils, hair treatments in dual-color PETG bottles

The ability to produce single- or dual-color bottles, integrated handles, and tamper-evident neck finishes meets both functional and branding requirements.

6. Advantages Over Competing Technologies

Compared to injection blow molding (IBM) or reheat stretch blow molding (RSBM), 5L EBM offers:

• No preform required → lower tooling and material logistics cost
• Superior design freedom → handles, non-cylindrical shapes, thick walls
• Inherent suitability for opaque, multi-layer, and chemically aggressive materials
• Scalable from R&D to mass production on a single platform
• Easier recycling due to mono-material or clearly separable layer structures

7. Sustainability and Future Trends

Modern 5L EBM machines align with circular economy principles:

• Compatibility with recycled resins (rHDPE, rPP) up to 100%
• Onboard granulators for immediate flash recycling
• Energy-saving hydraulic systems reduce power consumption by 20–30%
• Digital production logs enable carbon footprint tracking per batch

Future innovations may include:

• AI-driven parison control using vision feedback
• Predictive maintenance via IoT sensors
• All-electric hybrid platforms for cleanroom or zero-emission facilities

8. Conclusion

The 5-liter extrusion blow molding machine represents a mature yet dynamically evolving technology at the heart of industrial packaging. Platforms like the DKB-5L demonstrate how mechanical robustness, material science, and digital intelligence converge to meet the demands of high-volume, high-value production. As global markets prioritize sustainability, customization, and operational efficiency, 5L EBM systems will remain indispensable in delivering safe, functional, and environmentally responsible plastic containers.
